Parametric Architecture: The Complete Guide to Computational Design in Modern Buildings

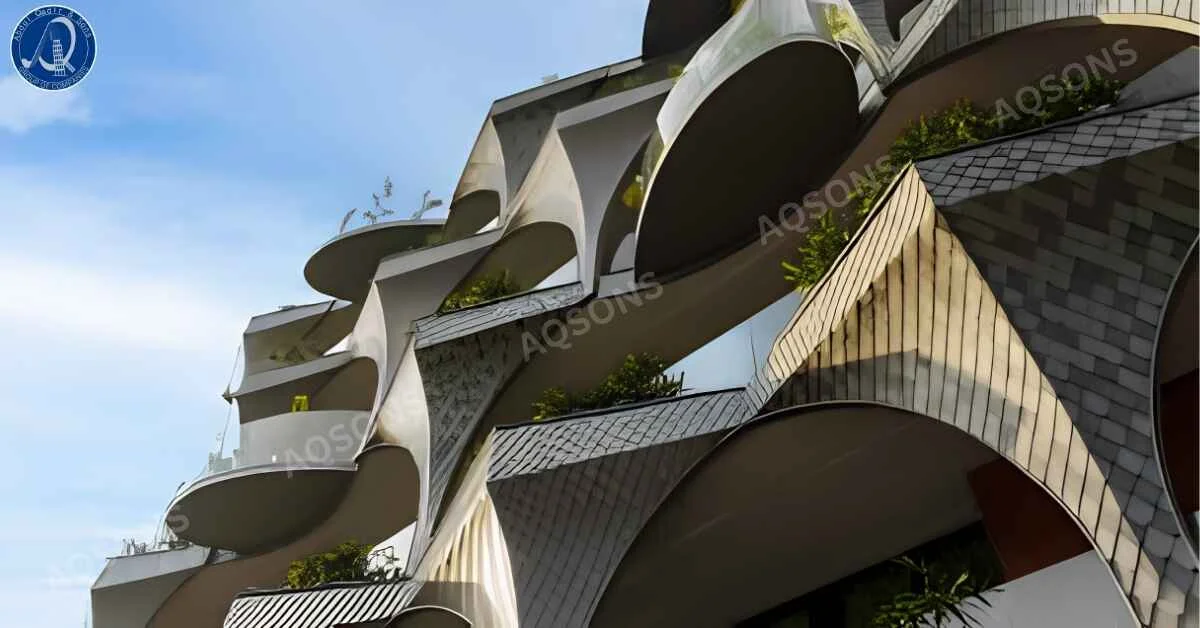

Walk through any big city today, and you’ll likely spot at least one building that looks like it grew rather than got built. Curved glass towers, honeycomb facades, roofs that ripple like fabric in the wind. This is parametric architecture, a design approach using algorithms and data, not just imagination, to shape buildings.
For Pakistan, where cities like Lahore, Karachi, and Islamabad keep expanding under brutal summer heat, this isn’t just a style trend. It’s a practical tool for buildings that respond to climate instead of fighting it with non-stop air conditioning.
Quick Summary
- Parametric architecture uses algorithms and adjustable parameters to generate and update building designs automatically
- Common tools: Rhino 3D + Grasshopper, Dynamo, Houdini
- Real benefits: energy efficiency, material savings, faster design iteration
- Real limits in Pakistan: high training cost, limited local digital fabrication
- Best fit: landmark buildings, climate-responsive facades, not every residential project
What Is Parametric Architecture?
Parametric architecture is a design method that uses algorithms and adjustable variables called parameters to shape a building. Instead of drawing a fixed shape and forcing everything to fit around it, architects set up rule-based design relationships first. Change one input, like sun direction or plot shape, and the whole design updates on its own.
| Traditional Design | Parametric Design |
|---|---|
| Fixed drawings, redrawn by hand for changes | Live model, updates automatically with new data |
| One design tested at a time | Dozens of options generated and compared quickly |
| Performance checked after design is set | Performance simulated during design |
Core Principle: Parameters and Relationships
Think of a spreadsheet where every cell links to a formula change one number, and a dozen others shift automatically. Parametric architecture works the same way, except the “cells” are walls, columns, and openings, and the “formulas” are structural and environmental relationships.
- A parameter can be simple (wall height) or complex (wind flow across a facade)
- Parameters are always connected; shift orientation, and shading recalculates automatically
- This process supports form-finding: Gaudí used hanging chain models to let gravity “design” arches for the Sagrada Família; software now runs the same test digitally
Parametricism as a Design Movement
Architect Patrik Schumacher coined Parametricism in the early 2000s, positioning computational design as a successor to modernism and postmodernism. Firms like Zaha Hadid Architects built entire portfolios around flowing forms driven by algorithmic architecture.
Important distinction: parametricism (the style) and parametric design (the tool) aren’t the same. You can use parametric methods for a perfectly ordinary-looking, climate-smart building. The tool is flexible the swooping aesthetic is optional.
A Brief History of Parametric Architecture
| Era | Development |
|---|---|
| Late 1800s | Gaudí’s hanging chain experiments early physical form-finding |
| Mid-1900s | Frei Otto used soap films and stretched fabric for tensile structures (Munich Olympic Stadium roof) |
| 1990s–2000s | Aerospace software CATIA entered architecture; Frank Gehry’s team modeled Guggenheim Bilbao |
| 2000s onward | Rhino 3D + Grasshopper made computational design accessible to smaller firms |
In Pakistan, adoption has come more gradually through returning graduates trained abroad, international competitions, and universities like NCA, UET, and COMSATS slowly adding computational tools to their teaching. Interest among younger architects is climbing fast, even if practice is still catching up.
How Parametric Design Works: The Process
- Define the brief site dimensions, climate data, structural needs, budget
- Set the parameters; turn inputs into digital variables with logical relationships
- Generate options: software produces multiple variations almost instantly
- Run simulations: test each option against real performance data (energy, daylight)
- Refine the design: drop weak options, push strong ones further
- Prepare for construction: the final model becomes drawings and fabrication files
This is an iterative design process. Nothing is final until the data supports it a big shift from traditional practice, where late changes often meant starting over.
Algorithms and Scripting
Visual programming is the engine behind this. In Grasshopper, architects drag components onto a canvas and wire them together, building logic without typing code. Those comfortable with actual coding (Python, C#) can go further with text-based scripting once visual nodes hit their limits.
Software and Tools Used
| Software | Best For | Learning Curve |
|---|---|---|
| Rhino 3D + Grasshopper | Freeform modelling, visual scripting | Moderate |
| Dynamo (Revit) | Parametric workflows inside BIM | Moderate |
| Houdini | Advanced procedural modelling | Steep |
| Blender (Geometry Nodes) | Free, open-source parametric modelling | Moderate |
Digital Fabrication and Construction
Designing the form is half the job. Digital fabrication CNC fabrication, 3D printing in architecture, robotic assembly turns the digital model into real components. This “file-to-factory” workflow is where Pakistan’s construction industry currently faces real limits: design software is accessible, but advanced CNC mills and large-format 3D printers remain far less common here than in the UAE, Germany, or the UK. Local startups are slowly closing that gap.
Key Benefits of Parametric Architecture
- Structural efficiency software calculates exact material needs, cutting waste and cost
- Better daylight and airflow simulated early, not discovered after construction
- Faster decisions dozens of variations tested in the time one used to take by hand
- Better collaboration engineers and architects work from one live model
- Site-responsive design handles irregular urban plots common in Karachi and Lahore
Challenges and Criticisms
- Learning visual programming takes real time and training a cost barrier for smaller firms
- Complex models need serious computing power and processing time
- Some parametric buildings chase visuals over usability dramatic facades can cause glare or high cooling bills
- Risk of a repetitive “parametric look” across cities worldwide
- In Pakistan specifically: a real gap between what software can design and what local fabrication can build
“A design that looks perfect on screen still has to survive contact with a construction site, a budget, and a building code. That’s true whether it’s parametric or not.”
Real-World Examples
| Project | Location | What It Demonstrates |
|---|---|---|
| Heydar Aliyev Center | Baku, Azerbaijan | Free-form architecture blurring building and landscape |
| Beijing National Stadium (“Bird’s Nest”) | Beijing, China | Structural analysis optimizing a complex steel lattice |
| Al Bahar Towers | Abu Dhabi, UAE | Responsive façade inspired by mashrabiya screens closest climate parallel to Pakistan |
The Al Bahar Towers case matters most for Pakistan: triangular panels open and close automatically based on sun position, combining biomimicry in architecture with computational tools to fight intense heat and glare a direct parallel to conditions in Sukkur or Jacobabad.
Parametric vs. Traditional Architecture
| Factor | Parametric | Traditional |
|---|---|---|
| Design process | Rule-based, algorithm-driven | Manual drafting |
| Flexibility | High auto-updates | Low needs redrawing |
| Upfront cost | Higher | Generally lower |
| Best suited for | Complex, climate-responsive buildings | Simple, budget projects |
| Local fabrication needs | Often specialised | Standard construction |
For a standard residential home, traditional methods usually remain the more affordable choice. For landmark buildings or heavy-energy-demand towers, parametric methods can justify the extra cost through long-term performance.
Biomimicry in Parametric Design
Nature solved structural and environmental problems long before software existed. Biomimicry in architecture borrows these solutions:
- Honeycomb patterns strong, lightweight, material-efficient
- Branching tree structures distribute structural load naturally
- Shell geometries carry weight with minimal material
Zimbabwe’s Eastgate Centre mimics termite mound ventilation for passive cooling. For Pakistan’s energy-short, high-cost electricity market, this isn’t just an environmental talking point it’s a practical cooling strategy worth applying in hot regions like Multan or interior Sindh.
Sustainability and Parametric Architecture
Sustainable architecture and parametric methods pair naturally, since computational tools simulate performance before construction begins:
- Environmental simulation models sun exposure, wind, and thermal behavior
- Energy simulation and daylight analysis help hit green certification targets
- Passive design shading and ventilation become precise, data-driven decisions
Fair caveat: highly intricate parametric forms sometimes need more material or specialized fabrication, which can offset some environmental gains. Net-zero carbon buildings stay achievable but only when sustainability is a real priority, not an afterthought.

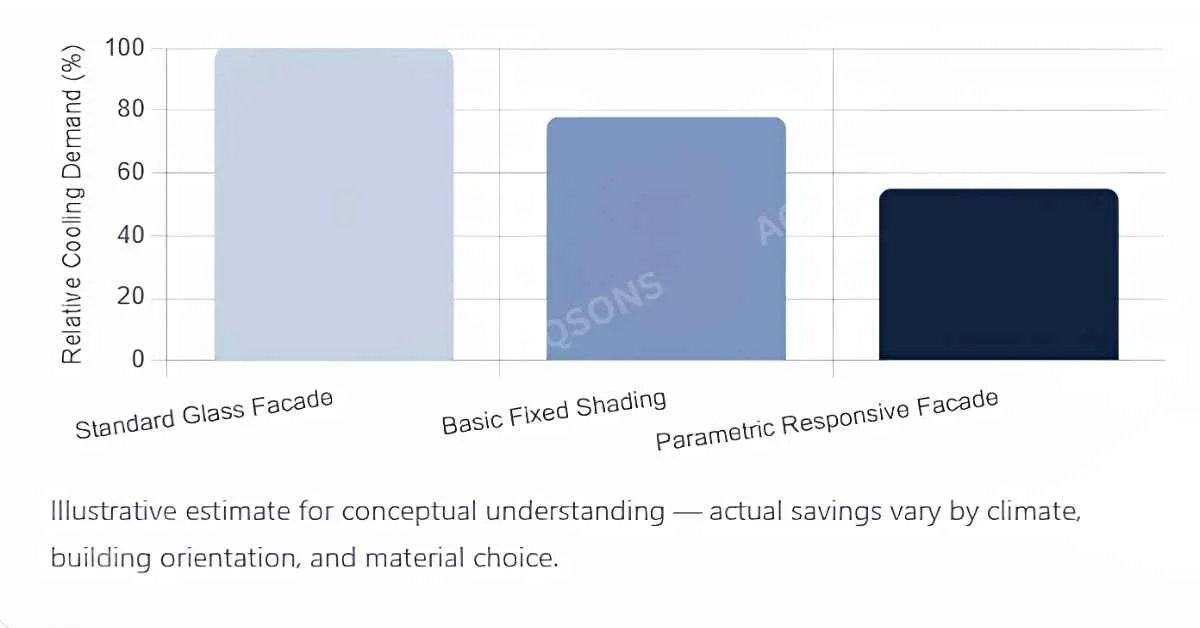

Facade Type vs. Relative Cooling Energy Demand

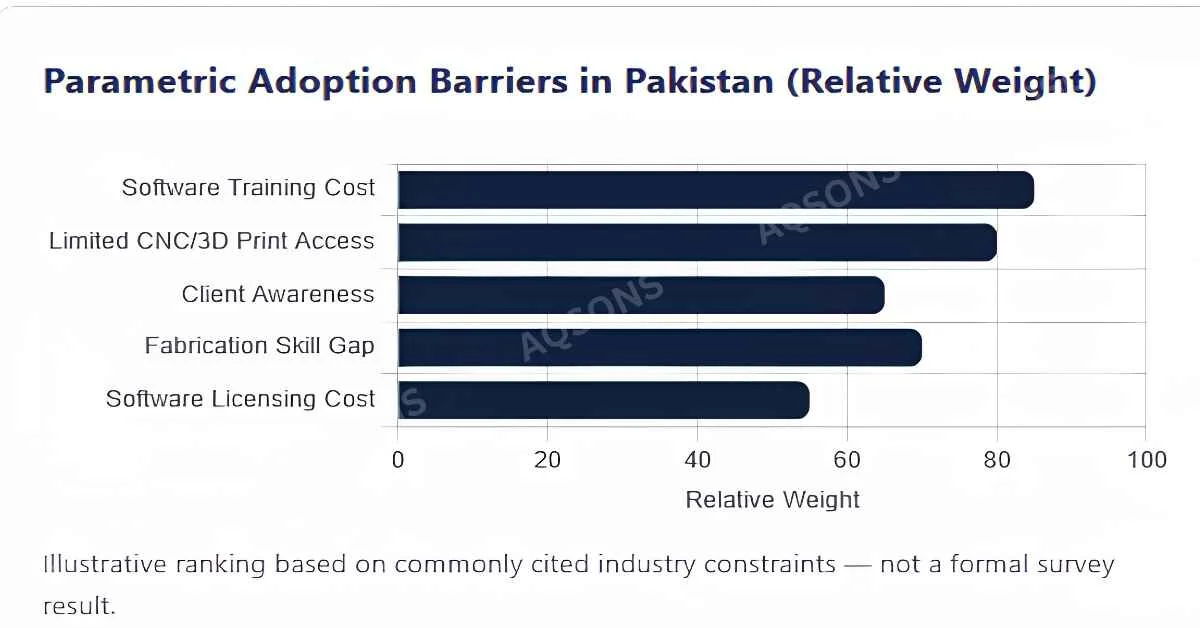

Parametric Adoption Barriers in Pakistan (Relative Weight
The Future of Parametric Architecture
- AI merging with generative design software proposing full solutions from stated goals
- Digital construction (robotic assembly, large-scale 3D printing) maturing and becoming more affordable
- Parametric thinking expanding into urban planning modeling traffic, density, and infrastructure at city scale
AQ Sons Group of Companies is a trusted construction, architecture, interior design, and real estate company delivering quality projects across Pakistan.
How to Get Started
- Start with Rhino 3D + Grasshopper biggest community, most free tutorials
- Use student licenses to keep costs low
- Join Pakistani design communities on Facebook/LinkedIn for shared resources
- Learning path: basic 3D geometry → visual scripting → environmental simulation
- Build one strong portfolio piece even a small pavilion or facade study
Conclusion
Parametric architecture isn’t a trend chasing dramatic curves it’s a disciplined way to solve real design problems using data and computational power. For Pakistan, facing extreme heat, rapid urban growth, and rising energy costs, this approach offers practical value, not just visual flair. The tools are more accessible than ever. The best time to start was years ago; the next best time is now.
Frequently Asked Questions
What is parametric architecture in simple terms?
A design method using adjustable rules and data, instead of fixed drawings, to shape buildings.
Is parametric architecture used in Pakistan?
Adoption is growing but still limited compared to countries with stronger digital fabrication infrastructure.
What software do parametric architects use?
Mainly Rhino 3D with Grasshopper, Dynamo for Revit, and Houdini for advanced work.
Is parametric design the same as generative design?
Related, not identical. Parametric design follows rules the architect sets directly; generative design often lets software propose options from broader goals, sometimes using AI.
Do I need coding skills?
Not at first visual programming tools like Grasshopper need no traditional code. Scripting helps later for advanced control.
Is it expensive to build in Pakistan?
Often yes, due to specialized fabrication and training costs. Simpler applications like shading systems stay practical and affordable.
