DPC in Construction: What It Is, Why It Matters, and How It’s Installed

Checked against Lahore Development Authority and DHA Peshawar building rules. Written for Pakistani homeowners and builders. Last updated: July 2026.

If a wall in your house has damp patches, peeling paint, or a musty smell near the floor, your builder probably skipped DPC. DPC stands for Damp Proof Course. It is a simple, low-cost step that stops a very expensive problem later.

Many people only learn about DPC after they see damage. By then, the fix costs far more than it would have during construction. That’s why it helps to understand this topic before you build, buy, or renovate a house.

This guide gives you clear, short answers on what DPC is, where it goes, which material to pick, how it’s installed, and how to fix it if it fails.

Quick Facts

What Is DPC (Damp Proof Course)?

DPC is a moisture barrier. It’s a waterproof layer built into a wall or floor. Its job is simple: stop water from moving up through the building. Without it, even a well-built, expensive house can develop damp problems within just a few years.

Bricks and mortar are porous. They have tiny gaps, like a sponge. Ground water can climb through these gaps. This upward pull is called capillary action. DPC blocks that path.

In most Pakistani homes, DPC sits at the plinth level DPC. That’s the spot where the foundation ends, and the wall above it begins. Think of it as a thin waterproof line running across the full width of every wall. Water hits this line and cannot climb any higher.

People often mix up DPC with damp proof membrane (DPM). Here’s the simple difference:

A good house uses both together. This creates one continuous moisture barrier all around the building.

Why Is DPC Important in Construction?

Skip DPC, and moisture spreads fast through foundation and plinth masonry. It doesn’t stay in one spot; it travels upward and sideways through the whole wall over time. Here’s what it protects:

• Structure  stops moisture from weakening brick wall construction and softening bricks
• Finishes  keeps plaster, paint, and skirting boards from peeling and swelling
• Health  cuts down mould, a real health risk in Pakistan’s humid summers

Here’s what shows up when DPC is missing or failed:

DPC is also part of the law, not just good practice. The Lahore Development Authority and DHA Peshawar both list DPC as a required item in their building rules. Skip it, and your build may not even meet basic construction standards.

How Does Rising Damp Occur Without DPC?

Here’s the simple version. Soil holds water. A wall sitting directly on wet soil pulls that water up through its pores. This is capillary action, the same pull that makes a sugar cube soak up water from just one corner. The water keeps climbing until it either dries out or hits a barrier like DPC.

In Pakistan, this gets worse near canals, in low areas of Lahore, and in coastal zones near Karachi. These places have a high water table, so groundwater sits close to the surface. Even a small gap in the DPC line can let years of moisture creep into the wall above it.

Watch for these early warning signs:

• Tide marks near the bottom of walls
• Paint peeling only near the floor
• A musty smell that returns after cleaning
• White salt patches on lower walls

Ignore these signs, and repair costs go up fast. It also hurts resale value.

Types of DPC Materials

Material choice depends on budget, climate, and whether it’s new work or a repair job. Most homeowners never need to know every option in detail, but knowing the basics helps you check what your contractor is actually using on site.

Rigid DPC Materials

Slate and engineering bricks. Still seen in old buildings in Lahore and Peshawar. Rarely used today because:

• Cost is higher
• Harder to install
• Can crack if the building settles

Flexible DPC Materials

The most common choice in Pakistan. Includes bitumen felt, plastic/polyethylene membrane, and PVC sheets. Why builders like it:

• Cheap and easy to find
• Any regular mason can install it
• Flexes without cracking

Semi-Rigid DPC Materials

Mastic asphalt. Used mostly on flat roofs and commercial buildings with heavy water exposure.

Chemical DPC (Injection Method)

Best for old houses without any DPC. Works in three steps:

1. Drill holes into the brick wall at one level
2. Inject a silicone-based damp-proofing chemical
3. The chemical spreads and forms a water-repelling barrier

This method is popular because it doesn’t need any wall demolition. Most jobs finish within a day or two, depending on the size of the house, and normal life inside the home can continue during the work.

DPC vs Waterproofing

DPC and waterproofing sound similar, but they are not the same thing. DPC is a single, specific barrier. Its only job is to stop rising or side-moving dampness in walls and floors. Waterproofing is a much bigger term. It covers many systems used to stop water from entering terraces, bathrooms, basements, balconies, and water tanks.

A well-built house needs both. DPC protects the base of the wall from ground moisture. Waterproofing protects the parts of the house that face rain, water tanks, or wet daily use, like bathrooms and roofs. Skipping either one leaves a gap in your home’s protection, even if the other one is done perfectly.

Where Is DPC Installed in a Building?

DPC goes wherever water can enter. In a typical Pakistani house, that means:

• Plinth level, the most common spot, right above the foundation
• Below ground floors paired with DPM for ground floor damp proofing
• Basements combined with basement waterproofing and vertical DPC
• Window sills and door openings where rain tends to pool
• Parapet walls need parapet wall waterproofing on rooftops

One common mistake: raised flower beds or paving that end up higher than the DPC line. Once that happens, water finds a way around the barrier, and the DPC stops working.

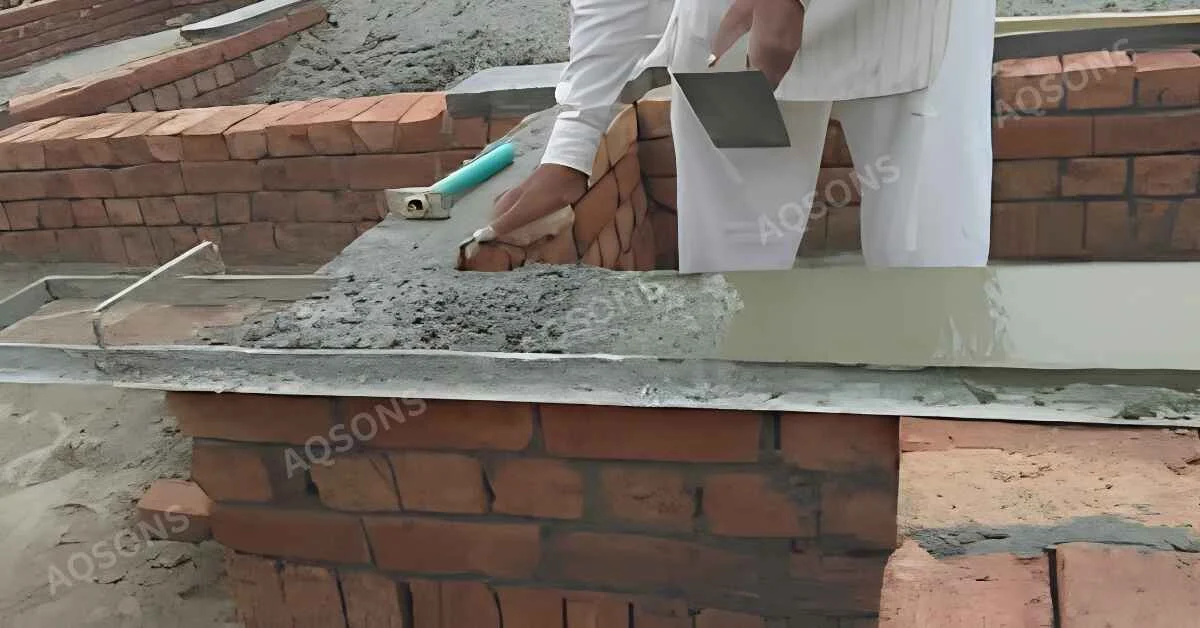

DPC Installation Process Step-by-Step

Site Preparation

Clean the wall surface. It must be dry, level, and free of loose mortar or dust. Skipping this step is a common shortcut, and it weakens how well the DPC bonds to the wall below it.

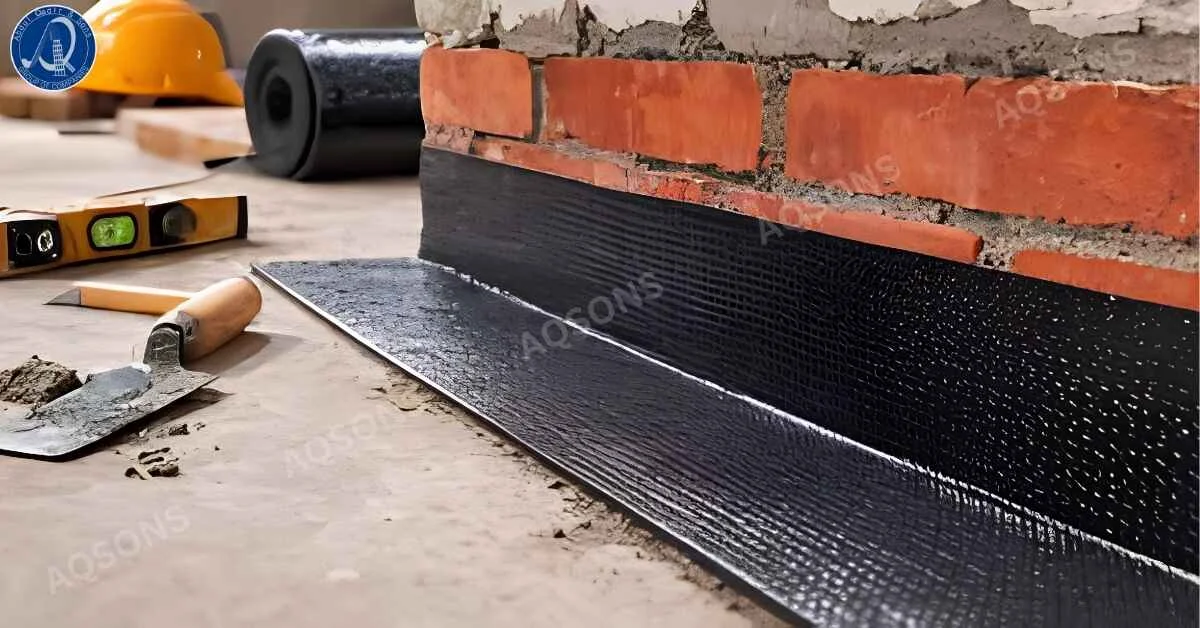

Laying the DPC Membrane

Lay the DPC across the full width of the wall. No gaps at corners. Standard height is at least 150mm above finished ground level. Getting this height wrong is one of the most common reasons DPC fails within just a few years.

Sealing and Joining

Seal every joint properly. Membrane types need heat-sealing or adhesive at the overlaps. Make sure horizontal DPC at plinth level connects fully with any vertical DPC nearby. A break at even one joint gives water a way around the whole barrier.

Common Installation Mistakes to Avoid

• DPC placed too low, below outdoor ground level
• Bridging, where soil or plaster covers the DPC
• Poor overlap at joints
• Skipping curing time for cement concrete waterproofing compound

DPC Building Regulations and Standards

DPC is a legal requirement under Pakistani building rules, not just a suggestion. A few real examples:

• Lahore Development Authority building rules define DPC as a mandatory moisture-proof layer
• DHA Peshawar commercial building rules list DPC as a standard requirement
• Government technical specs (like those from AJK’s Planning and Development Department) set exact thickness and curing rules for DPC

Enforcement is stricter on big projects. Smaller homes often skip formal checks. If you’re building on a flood-prone plot or a high water table area, get a structural engineer involved. It’s a small cost compared to fixing damp damage later. Even if your builder tells you DPC is “not really needed” for a small house, ask them to show it in the plan anyway. It costs very little to include and far more to add later.

How to Identify a Damaged or Failing DPC

DPC failure doesn’t happen overnight. It builds up slowly, often over months, before any real sign shows up on your walls. Knowing what to look for early can save you a lot of repair costs later.

Outside signs:

• Bridging (soil or plaster covering the DPC)
• Cracked or brittle DPC material
• Gaps or punctures at joints

Inside signs:

• Swollen skirting boards
• Lifting floor tiles
• A damp smell that returns after repainting

Not every damp patch is a DPC problem. Use this table to check:

If it matches the first row, call a damp surveyor. Repainting won’t fix the real cause.

DPC Repair and Retrofitting Options

Your fix depends on the problem:

• No DPC at all  use chemical injection DPC
• Damaged physical DPC  full or partial replacement
• Ground level too high  lower the soil, fix drainage
• No outer protection: add plinth protection

Fixing the real cause matters more than repainting. A fresh coat of paint over a damp wall is a short-term fix at best. Within a year, the same stains and smell usually come right back, and you end up paying for both the paint job and the actual repair anyway.

Cost of DPC Installation

Cost depends on the city, material, and whether it’s new work or a repair job.

What pushes cost up:

• House size: bigger house, more material and labor
• Access: tight, old city plots cost more to work on
• City: labor rates are higher in big cities

Flexible membrane DPC is easy enough for a regular mason to handle correctly, so labor cost stays low. Chemical injection DPC needs a trained specialist, since wrong drilling or the wrong chemical dose can make the fix fail. Get at least two or three quotes before you hire anyone. Prices can vary a lot, even in the same city.

AQsons Group of Companies is a leading construction, architecture, interior design, and real estate company in Pakistan, providing complete building solutions with quality, innovation, and reliability.

Conclusion

DPC in construction is a small cost that saves you from a big repair bill later. Given Pakistan’s humid climate and high water tables in many cities, it’s not something to skip, whether you’re building new or fixing an old house. A few thousand rupees spent correctly on DPC today can save lakhs in plaster, paint, and flooring repairs down the road.

Get a damp survey done if you see warning signs, and talk to a structural engineer early if you’re still planning your build. It’s a small step that protects your home, your health, and your investment for decades to come. Treat DPC as part of your foundation budget from day one, not as something to add later if problems show up.

FAQs

1. What is DPC in construction?

DPC means Damp Proof Course. It’s a waterproof layer that stops ground moisture from rising into walls and floors.

2. Why is DPC important in Pakistan?

Pakistan has humid cities like Karachi and high water table areas in Punjab. Without DPC, rising damp damages walls fast and can affect health too.

3. What is the difference between DPC and DPM?

DPC goes inside walls, mostly at plinth level. DPM goes under floor slabs. Both stop rising damp, just in different spots.

4. How high should DPC be above ground level?

At least 150mm above the finished outdoor ground level.

5. Can DPC be added after a house is already built?

Yes. Chemical injection DPC is made exactly for this. No major wall work is needed.

6. How long does DPC last?

A properly installed DPC can last for decades, often the life of the building, as long as nothing blocks or bridges it later.
